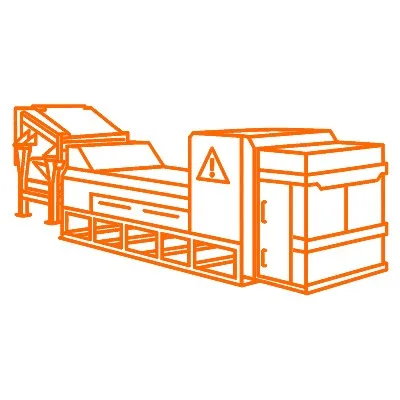

AI Separator for Intelligent Metal and Wire Sorting

Intelligent Sorting for Complex Recycling Materials

The CurrenTek AI Separator is designed for intelligent identification and upgrading of complex recycling materials after primary separation stages.

Using image recognition and intelligent classification technology, the system analyzes visible characteristics of individual material pieces and separates selected target materials from mixed recycling streams.

It can be applied to the recovery and upgrading of stainless steel, selected metal fractions, wire and cable materials, aluminum-rich scrap, and other identifiable recyclable materials, depending on the material characteristics and project requirements.

Unlike conventional separation methods that primarily rely on magnetic properties or electrical conductivity, AI-based sorting provides an additional identification stage for materials that may remain mixed after initial recovery.

This makes the AI Separator particularly useful when a recycling plant needs to improve the purity of an existing metal fraction or recover valuable materials that are difficult to separate using conventional methods alone.

What Materials Can the AI Separator Sort?

The exact sorting configuration depends on the customer’s incoming material and target product.

Typical applications can include:

Stainless Steel Sorting

Stainless steel can remain in mixed non-ferrous or shredded recycling streams after previous separation stages.

The AI Separator can be configured to identify selected stainless steel pieces according to their visible characteristics and separate them from surrounding materials.

This can help recyclers produce a cleaner metal fraction and recover additional value from mixed scrap.

Wire and Cable Recovery

Wire and cable materials are common in automotive shredder residue, electrical scrap, mixed metal waste and other recycling streams.

Their irregular shapes and mixed composition can make conventional separation difficult.

AI recognition can help identify visible wire and cable pieces in a properly prepared material stream and separate them as a dedicated recyclable fraction.

Mixed Metal Sorting

Complex scrap streams can contain combinations of:

• Stainless steel
• Aluminum-rich materials
• Copper-bearing pieces
• Brass
• Zinc-containing materials
• Wire and cable
• Ferrous attachments
• Plastic
• Rubber
• Other recyclable components

AI-based recognition can be used as an upgrading stage to identify selected target materials and reduce unwanted contamination in the final product.

The system should be configured around the specific materials the customer wants to recover rather than attempting to treat every metal as one category.

How AI Sorting Works

A successful AI sorting process begins with stable material presentation.

Material moves through the inspection area where the recognition system captures visual information from the individual pieces.

The intelligent classification system analyzes identifiable characteristics such as:

• Color
• Shape
• Surface appearance
• Texture
• Object profile
• Visible structural characteristics
• Other trained visual features

The system then classifies the detected objects according to the configured sorting target.

Selected material is separated from the main stream to produce a cleaner and more valuable output fraction.

Because real recycling materials vary significantly, recognition performance depends on factors including material condition, size range, contamination level, feed stability and how clearly individual objects can be presented to the recognition system.

For this reason, AI sorting should be treated as part of an integrated recycling process rather than as an isolated machine.

Why Material Preparation Matters

AI recognition performs best when individual pieces can be clearly identified.

Poor material presentation can reduce sorting consistency.

Important upstream conditions include:

Stable Feeding

A uniform feed rate helps prevent excessive material overlap and allows the recognition system to evaluate individual pieces more effectively.

Controlled Material Size Range

Very large and very small pieces may behave differently during sorting.

Material size classification can help create a more stable feed condition for intelligent recognition.

Reduced Ferrous Contamination

Large quantities of iron and steel are normally better removed before the material reaches the intelligent upgrading stage.

This allows the AI system to focus on more complex target materials.

Good Material Distribution

When pieces overlap heavily, important visual features can be hidden.

A well-distributed material layer improves the opportunity for accurate identification.

Controlled Dust and Contamination

Heavy dirt, coatings or surface contamination may change the visible appearance of recyclable materials.

The actual feed condition should therefore be evaluated before equipment configuration.

Where AI Sorting Fits in a Recycling Line

The CurrenTek AI Separator is generally used as an upgrading stage rather than the first machine in a recycling process.

A typical recycling process may follow this logic:

Mixed Material

↓

Material Preparation

↓

Ferrous Metal Removal

↓

Primary Non-Ferrous Recovery

↓

AI Intelligent Sorting

↓

Cleaner Target Material

This arrangement allows conventional technologies to perform the bulk recovery work first.

The AI Separator can then focus on more difficult materials that require additional identification.

This approach can reduce unnecessary processing and improve overall system efficiency.

Applications

The CurrenTek AI Separator can be considered for a variety of recycling applications.

Zorba Upgrading

Zorba can contain aluminum together with stainless steel, copper, brass, zinc and other non-ferrous materials.

After primary recovery, intelligent sorting can be used to further upgrade selected fractions where additional purity is required.

ASR Processing

Automotive shredder residue is one of the most complex recycling streams.

It can contain:

• Stainless steel
• Aluminum
• Copper-bearing materials
• Wire
• Plastic
• Rubber
• Foam
• Glass
• Other mixed components

AI recognition can provide an additional upgrading stage after bulk metal recovery.

Wire Recovery

Visible wire and cable materials can be separated from appropriately prepared mixed recycling streams, helping recyclers create a more concentrated wire fraction for further processing.

Stainless Steel Recovery

Certain stainless steel pieces that remain in mixed scrap can be identified and separated as a dedicated target material.

Mixed Scrap Recycling

AI sorting can help recycling plants respond to changing feed compositions by targeting selected recyclable materials according to the project objective.

Why Use AI Sorting After Conventional Recovery?

Conventional recycling technologies remain essential.

They are highly effective for bulk material preparation and metal recovery.

However, complex recycling streams often contain materials with overlapping physical properties.

For example, several metal types may be:

• Non-magnetic
• Conductive
• Similar in size
• Mixed together after shredding

A conventional recovery stage may successfully separate these materials from non-metallic waste while still leaving several valuable metal categories mixed together.

AI sorting provides another level of material upgrading.

Instead of asking only:

“Is this metal or non-metal?”

the process can increasingly focus on:

“Which visible material category does this object belong to?”

That distinction can help recycling plants produce cleaner and more clearly defined product fractions.

Benefits of Intelligent Material Sorting

Higher Product Purity

Additional identification can reduce unwanted materials in the final product.

Recovery of Additional Valuable Materials

Selected stainless steel, wire and other recyclable fractions that remain after primary recovery can potentially be separated and sold independently.

More Flexible Sorting Targets

The sorting objective can be configured according to the customer’s material and required product.

Reduced Manual Sorting

Automated recognition can reduce dependence on repetitive manual picking for suitable applications.

Better Material Upgrading

The technology allows recycling plants to move beyond basic metal recovery toward more precisely defined product fractions.

Higher Downstream Value

Cleaner and more concentrated recyclable materials may provide greater value to downstream processors compared with highly mixed products.

AI Sorting Is Not the Same for Every Material

There is no single AI sorting configuration suitable for every recycling project.

A system used for stainless steel recovery may require different recognition settings and material preparation from a system designed for wire recovery.

Before recommending equipment, CurrenTek evaluates:

• Material type
• Target material
• Material size range
• Material shape
• Incoming contamination
• Processing capacity
• Feed condition
• Required product purity
• Available plant layout
• Upstream equipment
• Downstream processing requirements

This information is important because the success of intelligent sorting depends on both recognition technology and the physical condition of the incoming material.

Customized AI Sorting Solutions from CurrenTek

CurrenTek provides intelligent sorting solutions for recycling plants that need to upgrade complex mixed material streams.

A project should begin with the customer’s actual material.

Customers can provide:

• Material photos
• Material videos
• Material samples
• Material size range
• Required capacity
• Target materials
• Current process flow
• Desired final product

Based on this information, CurrenTek can evaluate where intelligent sorting should be integrated into the recycling process and whether additional material preparation is required.

For complex applications, material testing can help verify recognition performance before the final system configuration is determined.

From Basic Recovery to Intelligent Upgrading

Modern recycling is moving beyond the simple recovery of metals from waste.

The next step is to create cleaner, more precisely separated and more valuable recyclable material fractions.

Conventional technologies remain the foundation for bulk recovery.

AI-based recognition adds another level of control when mixed materials require more detailed identification.

For recycling streams containing stainless steel, wire, mixed metals and other identifiable recyclable materials, the CurrenTek AI Separator can provide an intelligent upgrading stage designed around the customer’s actual feed material and final recovery target.

The objective is not simply to sort more material.

It is to produce cleaner output, recover more value and create a more efficient recycling process.
